giant Curved Roofsystems

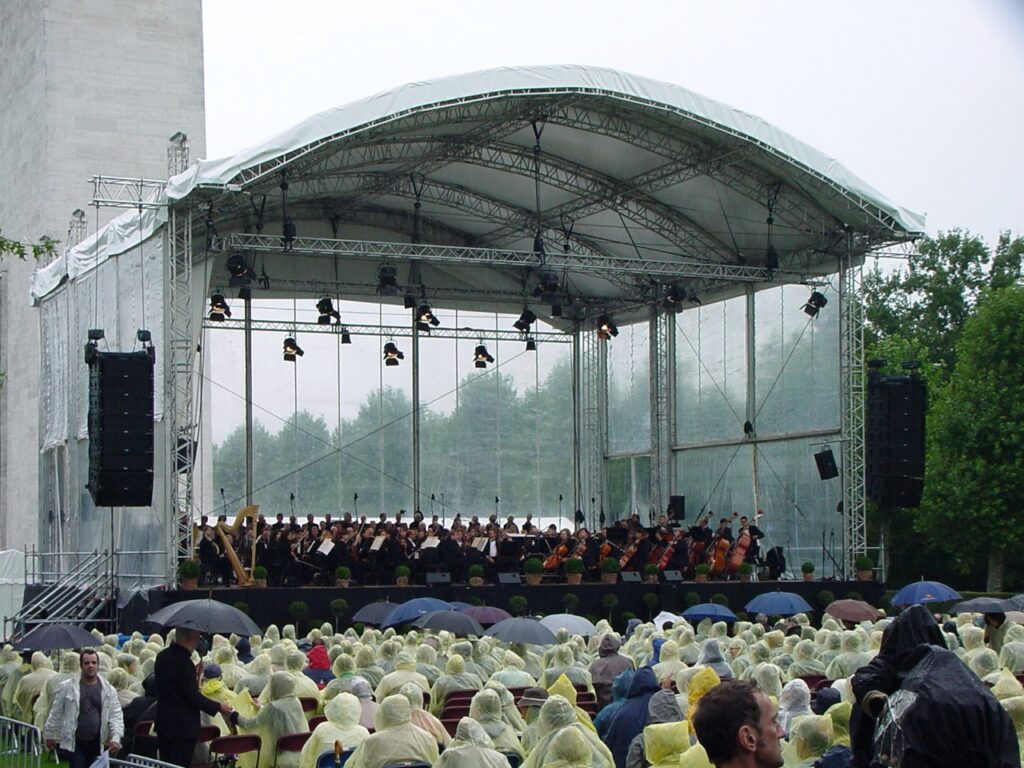

The Giant CurvedRoof system is an arched roof that can be built with 3, 4 or 5 arches. The roof grid is made up of 50×50 trusses that are supported by 4 or 6 40×40 mast trusses, depending on the version. The Curved Roof can be equipped with Sidestages on both sides. In addition, the curve dryer can be expanded with PA wings that can be loaded up to 2700kg! The standard version is with black sails, but transparent is also possible.
The Giant curved roof is available in the following variants:
IS175 and IS175 RT08:
| Floor: | Stagebeam 17.59m x 10.35m |
| Roof: PA-Wing | 17.40m x 12.20m x 8.00m. UDL: 4600kg Lifting height +8.50m. CPL 2700 kg |
| Finishing: | Black skirting, 2 stairs, working light. |
IS250
| Floor: | Stagebeam 17.59m x 14.49m |
| Roof: | 17.40m x 16.50 x 8.00m. UDL: 6000kg |
| Finishing: | Black skirting, 2 stairs, working light. |
IS260 RT08
| Floor: | Stagebeam 25.87m x 10.36m |
| Roof: PA-Wing | 17.40m x 12.20m x 8.00m. UDL: 4600kg Lifting height +8.50m CPL: 2700kg |
| Covered SideStage l&r: | 4.14m x 7.24m |
IS375 RT08
| Floor: | Stagebeam 25.87m x 14.49m |
| Roof: | 17.40m x 16.40m x 8.00m. UDL:6000kg |
| Covered Sidestage L&R: | 4.14m x 11.38m |
